Epoxy Resin Crystal Liquid for Badge
Item No.: 607 A/BSpecification: 20kg/set [Main Component] A component is resin, B component is curing agent. The main agent 607A Curing agent 607BColor: Colorless transparent Colorless transparentSpecific gravity: 1.15 1.15Visc......
Send Inquiry
Product Description
Item No.: 607 A/B
Specification: 20kg/set
[Main Component]
A component is resin, B component is curing agent.
The main agent 607A Curing agent 607B
Color: Colorless transparent Colorless transparent
Specific gravity: 1.15 1.15
Viscosity25°C: 150-400CPS 100MAXCPS
[Feature]
Epoxy resin 607AB is based on the room temperature, having the features of:
(1) good flowing property, natural defoaming, high transparency
(2) good toughness and room temperature or heating curing softness is good
(3) good surface
[Scope Of Application]

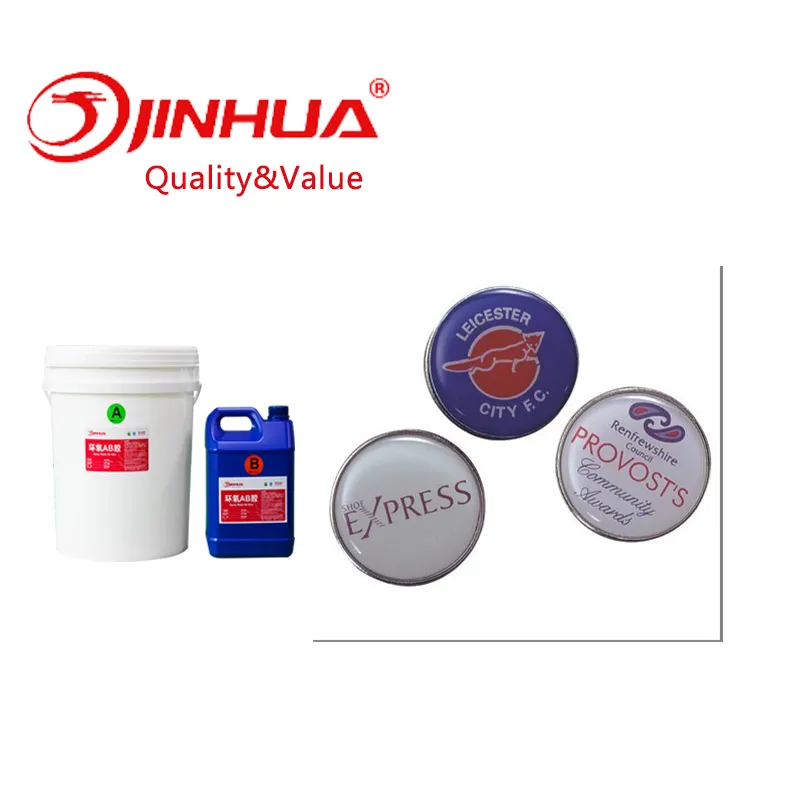

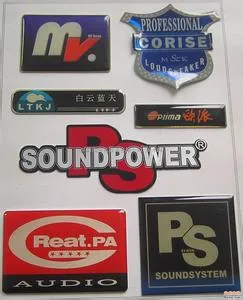

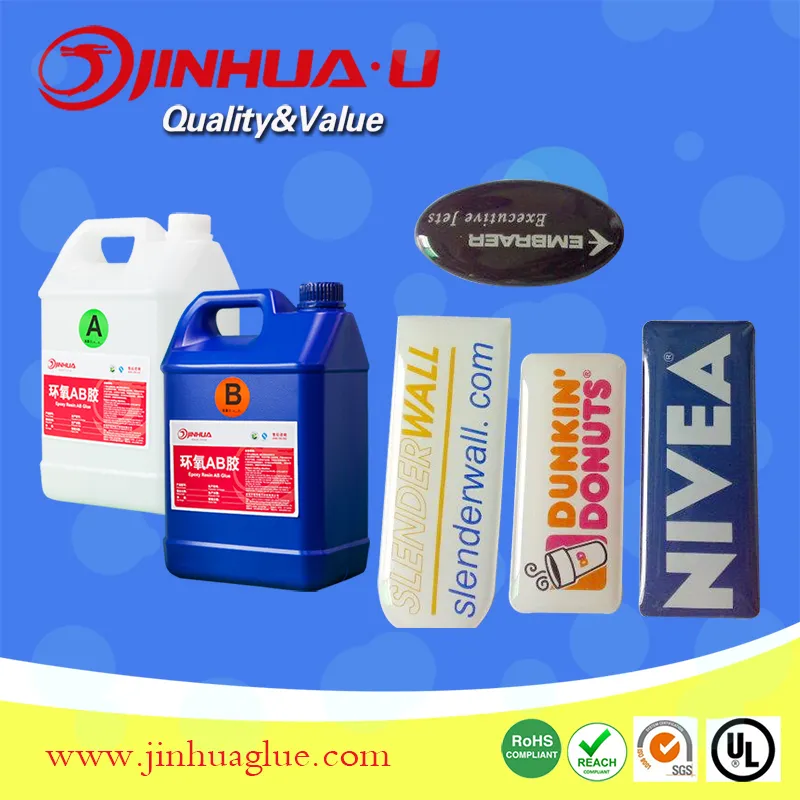

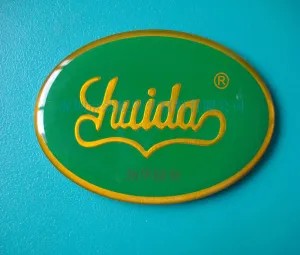

The products of this series are widely used for the LED potting, signs, nameplate, the surface encapsulation of the badge or transparent perfusion of electronic components.
[Conditions of usage]
1)Mixing ratio: A: B = 100:33(weight ratio)-->3:1
2)Hardening conditions: 25°C ×10-13 h or 55°C ×2 h (2 g)
3)Usable time: 25°C ×45min
[Using Method]
1.Working environment: The container of holding glue please keep clean, A and B part should be in accordance with the weight ratio, weigh accurately , mix fully along the container wall by clockwise and use after 3 to 5 minutes .
2.According to the operational time and dosage of mixing rubber, avoid wasting. When the temperature below 15°C, please put A glue to glue again after warm up to 30°C, easy to operate, (a glue will be thicken when low temperature ); Must be sealed lid after use, avoid product rejection caused by moisture absorption.
3.When the relative humidity is more than 85%, the curing surface easy to absorb moisture in the air, form a layer of white mist, so when the relative humidity is more than 85%, is not suitable for room temperature curing, suggest to use the heat curing.
[Warning]
1. The operating environment should be ventilative and should keep away of the fire. Closely sealed after use.
2. Avoid the glue contact the skin and the eye, if contacts the skin, with soap and clear water cleaning, if touches the eye carelessly, uses the clear water to flush and to see a doctor immediately.
3. If the liquid cement has the stratification when used for a long time, use after the agitation evenly, do not affect its product quality
4. Take strict precautions against touching by the kids and entering into the mouth.
5. Please make a trial to avoid usage mistakes before application.
[Storage And Packing]
Stock the products in the air-tight seal at the temperature of 25°C. The shelf life is half a year. It is available to use based on passing of the test if being beyond the shelf life.
FREE SAMPLE IS AVAILABLE!!!
Jinhua professional produce and market all kinds of epoxy resin AB glue which covers a very large range of applications.
Pls contact us just directly dial +86-13823546652 to discuss your application for a best EPOXY SOLUTION!!!
Specification: 20kg/set
[Main Component]
A component is resin, B component is curing agent.
The main agent 607A Curing agent 607B
Color: Colorless transparent Colorless transparent
Specific gravity: 1.15 1.15
Viscosity25°C: 150-400CPS 100MAXCPS
[Feature]
Epoxy resin 607AB is based on the room temperature, having the features of:
(1) good flowing property, natural defoaming, high transparency
(2) good toughness and room temperature or heating curing softness is good
(3) good surface
[Scope Of Application]
The products of this series are widely used for the LED potting, signs, nameplate, the surface encapsulation of the badge or transparent perfusion of electronic components.
[Conditions of usage]
1)Mixing ratio: A: B = 100:33(weight ratio)-->3:1
2)Hardening conditions: 25°C ×10-13 h or 55°C ×2 h (2 g)
3)Usable time: 25°C ×45min
[Using Method]
1.Working environment: The container of holding glue please keep clean, A and B part should be in accordance with the weight ratio, weigh accurately , mix fully along the container wall by clockwise and use after 3 to 5 minutes .
2.According to the operational time and dosage of mixing rubber, avoid wasting. When the temperature below 15°C, please put A glue to glue again after warm up to 30°C, easy to operate, (a glue will be thicken when low temperature ); Must be sealed lid after use, avoid product rejection caused by moisture absorption.
3.When the relative humidity is more than 85%, the curing surface easy to absorb moisture in the air, form a layer of white mist, so when the relative humidity is more than 85%, is not suitable for room temperature curing, suggest to use the heat curing.
[Warning]
1. The operating environment should be ventilative and should keep away of the fire. Closely sealed after use.
2. Avoid the glue contact the skin and the eye, if contacts the skin, with soap and clear water cleaning, if touches the eye carelessly, uses the clear water to flush and to see a doctor immediately.
3. If the liquid cement has the stratification when used for a long time, use after the agitation evenly, do not affect its product quality
4. Take strict precautions against touching by the kids and entering into the mouth.
5. Please make a trial to avoid usage mistakes before application.
[Storage And Packing]
Stock the products in the air-tight seal at the temperature of 25°C. The shelf life is half a year. It is available to use based on passing of the test if being beyond the shelf life.
FREE SAMPLE IS AVAILABLE!!!
Jinhua professional produce and market all kinds of epoxy resin AB glue which covers a very large range of applications.
Pls contact us just directly dial +86-13823546652 to discuss your application for a best EPOXY SOLUTION!!!
| The properties after hardening | ||
| 1)Withstand voltage | KV/mm | 38 |
| 2) Dielectric constant | 1KHZ | 3.7 |
| 3) Moisture absorption | % 24 hours | < 0.1 |
| 4) Flexural strength | Kg/mm2 | 28 |
| 5) Volume resistivity | Ohm3 | 1x1015 |
| 6) Induced electric loss | 1KHZ | 0.42 |
| 7)Compressive strength | Kg/ mm2 | 8.4 |
| 8) Impact strength | Kg/ cm/cm2 | 6.8 |
| 9) Surface resistance | Ohmm2 | 5X1015 |
