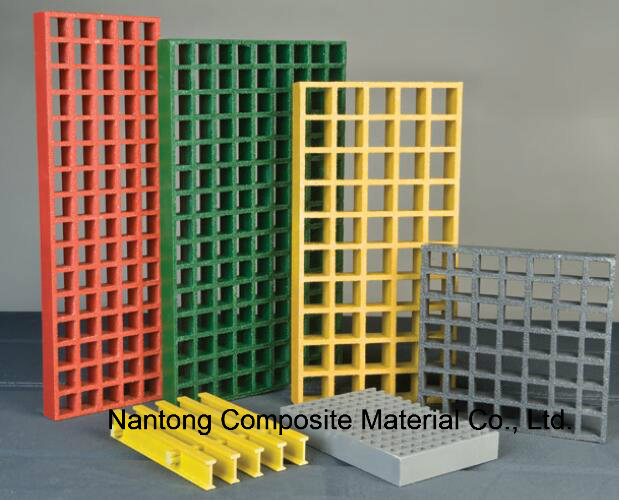

GRP/FRP Grating, Molded& Pultruded
Nantong Composite Material Co.,Ltd is a leading manufacturer specializing in Fiberglass Reinforced Plastic products in China. Our products include FRP molded and pultruded grating, FRP handrail, FRP profile, and FRP hand laminated products. Our phenolic grating passed USCG L2,L3 both in pultruded an......
Send Inquiry
Product Description
Nantong Composite Material Co.,Ltd is a leading manufacturer specializing in Fiberglass Reinforced Plastic products in China. Our products include FRP molded and pultruded grating, FRP handrail, FRP profile, and FRP hand laminated products. Our phenolic grating passed USCG L2,L3 both in pultruded and molded. Also now we are working on new technique like epoxy wedge stripes for wind power industry, railway sleeper,etc.
FRP Grate Benefits: Corrosion resistant. High strength-to-weight ratio. Long service life. Fire retardant. Slip & impact resistant. Non-conductive. Superior ergonomics. Easy to fabricate. Easy to install. Attractive, clean finish.
FRP Molded Grating Specification
FRP Pultruded Grating Specification

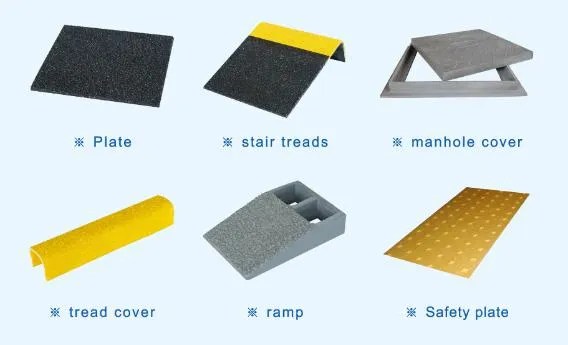

We also have other products below:
If you have fiberglass products demands, we sincerely welcome for your inquiry!
FRP Grate Benefits: Corrosion resistant. High strength-to-weight ratio. Long service life. Fire retardant. Slip & impact resistant. Non-conductive. Superior ergonomics. Easy to fabricate. Easy to install. Attractive, clean finish.
FRP Molded Grating Specification
| Item | Thickness (mm) | Mesh(mm) | Max. Panel Size(mm) | Weight(kg/m2) |
| 1 | 13 | 50X50 | 1220X3660 | 5.5 |
| 2 | 13 | 50X50(DM) | 1220X3660 | 7.46 |
| 3 | 13 | 38X38 | 1220X3660 | 6 |
| 4 | 14 | 40X40(20X20) | 1247X4047 | 9.3 |
| 5 | 22 | 40X40(20X20) | 1527X4047 | 16 |
| 6 | 22 | 40X40(8X8) | 1527X4047 | 16.5 |
| 7 | 25 | 38X38 | 1220X3660 | 12.6 |
| 8 | 25 | 25X100 | 1220X3660 | 13.05 |
| 9 | 25 | 25X100(HD) | 1220X3660 | 15.67 |
| 10 | 25 | 38X38(DM) | 1220X3660 | 14.38 |
| 11 | 30 | 38X38 | 1220X3660 | 15.9 |
| 12 | 30 | 52X52(25X25) | 1000X4049 | 16.42 |
| 13 | 30 | 40X40(20X20) | 1527X4047 | 18.78 |
| 14 | 30 | 40X40(8X8) | 1527X4047 | 19.58 |
| 15 | 38 | 38X101.6 | 1220x3660 | 11.65 |
| 16 | 38 | 38X152 | 1220x3660 | 15.13 |
| 17 | 38 | 38X38 | 1525X3966 | 19.5 |
| 18 | 38 | 25X101.6 | 1220X3745 | 21.7 |
| 19 | 38 | 25X152 | 1220X3660 | 22 |
| 20 | 38 | 40X40(20X20) | 1527X4047 | 24.6 |
| 21 | 38 | 38X38(19X19) | 1220X3660 | 25.5 |
| 22 | 40 | 40X40 | 1527X4047 | 21.43 |
| 23 | 50 | 50X50 | 1525X4000 | 23.43 |
| 24 | 50 | 25X50(HD) | 1220X1830 | 47 |
| 25 | 38 | 38X152 | 571.5X3660(Stair treads) | 17.23 |
| 26 | 20 | 38X38 | 1220X4000 | 9.8 |
| 27 | 25 | 40X40 | 1247X4047 | 12.3 |
| 28 | 25 | 50X50 | 1220X4000 | 11.5 |
| 29 | 30 | 40X40 | 1247X4047 | 14.6 |
| 30 | 38 | 25X152 | 565X3050(Stair treads) | 23.1 |
| 31 | 40 | 40X40(20X20) | 1247X4047 | 23.7 |
| 32 | 40 | 50X50 | 1220X4000 | 15.82 |
| 33 | 60 | 38X38 | 1220X4000 | 50.4 |
FRP Pultruded Grating Specification
| Item | Type | Height(mm) | Open Area | Weight(kg/m2) |
| 1 | I-4010 | 25 | 40% | 17.85 |
| 2 | I-5010 | 25 | 50% | 15.12 |
| 3 | I-6010 | 25 | 60% | 12.4 |
| 4 | I-40125 | 32 | 40% | 19.1 |
| 5 | I-50125 | 32 | 50% | 17.4 |
| 6 | I-60125 | 32 | 60% | 13.5 |
| 7 | I-4015 | 38 | 40% | 22.45 |
| 8 | I-5015 | 38 | 50% | 19.1 |
| 9 | I-6015 | 38 | 60% | 16.1 |
| 10 | T-1210 | 25 | 12% | 14.5 |
| 11 | T-1810 | 25 | 18% | 14 |
| 12 | T-3310 | 25 | 33% | 12.2 |
| 13 | T-3810 | 25 | 38% | 11.2 |
| 14 | T-3320 | 50 | 33% | 22.1 |
| 15 | T-5020 | 50 | 50% | 17.5 |
| 16 | I-40275 | 70 | 40% | 34 |
| 17 | I-50275 | 70 | 50% | 29 |
| 18 | I-60275 | 70 | 60% | 23.6 |
We also have other products below:
If you have fiberglass products demands, we sincerely welcome for your inquiry!
