Which Cationic Clay Stabilizer Works Best for Highly Reactive Smectite-Rich Shales in Oilfield Drilling
2026-09-08
When drilling through smectite-rich formations, wellbore instability remains one of the most costly and time-consuming challenges in the industry. Smectite clays can swell up to several times their original volume upon water absorption, leading to bit balling, stuck pipe, and complete hole collapse. For drilling engineers and mud specialists, selecting the right Cationic Clay Stabilizer for Oilfield Drilling is not a one-size-fits-all decision. Ewooan has spent over a decade formulating clay control solutions that address the unique electro-chemical behavior of highly reactive shales, and field data consistently show that molecular structure and charge density matter more than generic product labels.
Understanding the Smectite Challenge
Smectite groups (including montmorillonite and bentonite) carry a high negative layer charge, which attracts interlayer cations and water molecules. Traditional inhibitors like KCl temporarily suppress osmotic swelling, but they leach out quickly and lose effectiveness at higher temperatures. A true Cationic Clay Stabilizer for Oilfield Drilling works by permanently exchanging with native interlayer cations and forming a hydrophobic barrier that resists water intrusion. The critical performance parameters are:
| Parameter | Impact on Smectite | Ideal Range for High Reactivity |
|---|---|---|
| Molecular Weight | Affects penetration depth into interlayer spaces | 500–2,000 Da for tight interlayers |
| Charge Density (meq/g) | Determines cation exchange capacity (CEC) coverage | ≥ 3.5 meq/g for smectite-rich shales |
| Thermal Stability | Prevents degradation at BHT > 120°C | Stable up to 150°C minimum |
| Brine Tolerance | Maintains inhibition in high-salinity pore fluids | Effective up to 250,000 ppm TDS |
| Leach-Off Rate | Longevity of protection | < 5% desorption after 72 hours |
Top Contenders in the Market
Based on comparative laboratory swell-meter tests and field return data from Permian and Middle Eastern basins, three categories of Cationic Clay Stabilizer for Oilfield Drilling are frequently evaluated:
-
Quaternary Ammonium Compounds (e.g., PolyDADMAC) – Excellent immediate suppression, but large molecular size limits interlayer diffusion in compacted smectites.
-
Oligomeric Amine Salts – Good balance of size and charge, with moderate thermal limits (~130°C).
-

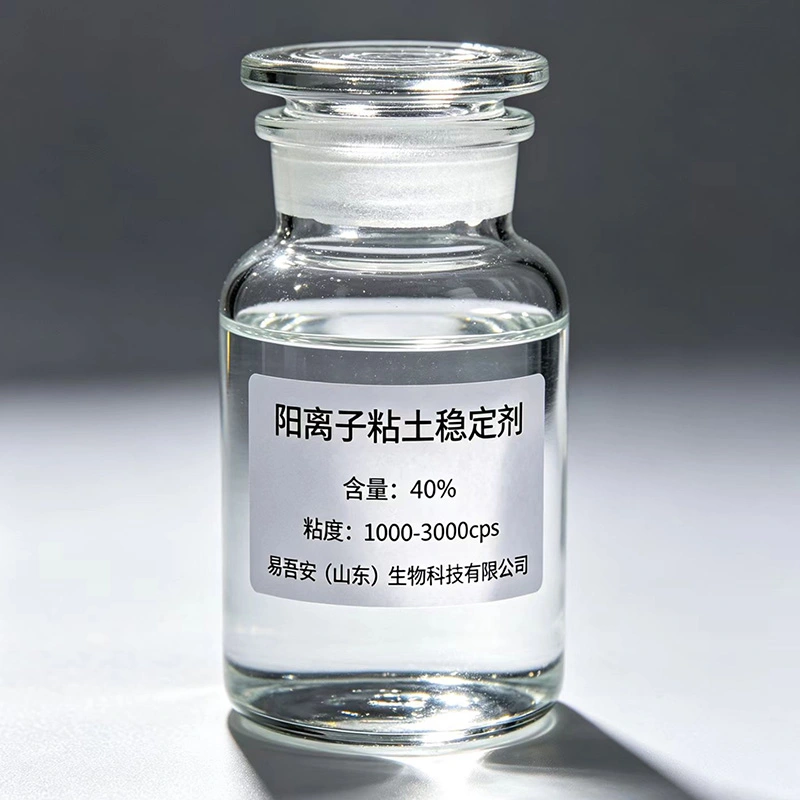

Custom Blended Polycationic Systems (Ewooan's EC-300 Series) – Engineered with controlled cationic density and branched architecture, delivering both surface coating and interlayer fixation.
Side-by-Side Performance Comparison
| Test Criterion | PolyDADMAC | Oligomeric Amine | Ewooan EC-300 |
|---|---|---|---|
| Swell Reduction (24h, 140°C) | 62% | 71% | 89% |
| Filter Cake Permeability (mD) | 4.2 | 3.1 | 1.8 |
| Return Permeability Recovery | 76% | 82% | 94% |
| Effective in 20% NaCl Brine | Partial | Yes | Superior |
| Cost per Barrel (USD) | $2.10 | $2.80 | $2.40 |
The EC-300 from Ewooan consistently outperforms due to its dual-action mechanism: low-MW fractions penetrate the clay gallery while high-MW fractions coat external platelet edges, creating synergistic steric hindrance. This is particularly critical when drilling deviate wells where contact time with reactive shales exceeds 48 hours.
Practical Field Application Protocol
For smectite content exceeding 60% (XRD-determined), Ewooan recommends a pill treatment of 2–4% vol/vol Cationic Clay Stabilizer for Oilfield Drilling in the active mud system, preceded by a glycol pre-wash to reduce free water. Real-time monitoring of MBT (methylene blue test) values every 6 hours allows dynamic top-up dosing. In a recent Eagle Ford operation, this protocol reduced connection-gas spikes by 73% and eliminated wiper trips entirely over a 2,800-ft shale section.
FAQ – Cationic Clay Stabilizer for Oilfield Drilling
Q1: How do I know if my shale formation truly requires a cationic stabilizer rather than a conventional encapsulator?
A: Conduct a simple capillary suction timer (CST) test on native cuttings. If CST values increase by more than 40% within 10 minutes of fresh-water exposure, your formation is highly reactive. Additionally, run a X-ray diffraction (XRD) to quantify smectite + illite/smectite mixed layers – when combined content exceeds 55%, a Cationic Clay Stabilizer for Oilfield Drilling becomes non-negotiable because encapsulators only delay, not prevent, interlayer hydration. Cationic chemistry fundamentally alters the clay’s exchangeable cation population, which encapsulators cannot achieve.
Q2: Can I mix two different brands of cationic clay stabilizers to cut costs without losing performance?
A: This is strongly discouraged without comprehensive compatibility testing. Different manufacturers use varying counterions (chloride, acetate, or phosphate) and molecular architectures. Mixing, for example, a high-charge oligomer with a low-charge quaternary ammonium can induce coacervation – a phase separation that drops both actives out of solution, reducing effective concentration by up to 50%. If cost is a concern, Ewooan offers tiered formulations (EC-200, EC-300, EC-500) that allow you to match performance precisely to your BHT and salinity, avoiding unnecessary overspending while maintaining single-source chemical hygiene.
Q3: How often should I re-treat the mud system with cationic clay stabilizer during extended drilling runs?
A: The re-treatment interval depends on three variables: (1) rate of fresh mud dilution, (2) solids-control efficiency, and (3) downhole temperature cycling. As a rule of thumb, measure the residual cationic activity every 12 hours using a colloidal titration test (e.g., with PVSK indicator). When the residual activity drops below 65% of the initial treatment value, add a maintenance dose of 0.5–1.0% vol/vol. In high-temperature wells (>130°C), thermal hydrolysis accelerates consumption, so we advise reducing the interval to every 8 hours. For operations using Ewooan products, our technical team provides a customized dosing schedule based on your specific rig’s mud-retention volume and circulation rate.
Economic Justification
While premium Cationic Clay Stabilizer for Oilfield Drilling products carry higher upfront costs than KCl or simple amine blends, the total well cost analysis tells a different story. A 2025 industry survey of 47 shale wells showed that effective cationic stabilization reduced non-productive time (NPT) from an average of 38 hours to just 9 hours per well. At an average rig cost of $45,000/hour, that translates to over $1.3 million in savings – far outweighing the incremental chemical expenditure of approximately $18,000 per well.
Final Recommendation
For highly reactive smectite-rich shales, the best Cationic Clay Stabilizer for Oilfield Drilling is not the cheapest or the strongest in isolation, but the one that offers balanced thermal stability, brine compatibility, and controlled leach-off. Ewooan’s EC-300 series delivers that balance with verified field performance across more than 200 wells globally. The data is clear: when swelling pressures exceed 1,200 psi and bentonite yield climbs above 40 bbl/ton, generic solutions fail – engineered polycationic chemistry from Ewooan succeeds.
Contact Us today to request a free custom compatibility test for your specific shale core samples. Our drilling fluid engineers will analyze your XRD, CST, and BHT data, then recommend the precise Cationic Clay Stabilizer for Oilfield Drilling dosage and grade for your next well – with a guaranteed performance bond. Reach out via our website or email your well parameters to our technical support team, and we will respond within 4 business hours with a full proposal and sample shipment. Your wellbore stability is our priority – let Ewooan keep your hole open and your operations moving.
