Product Description

Description
SF9080 is a single-component solvent free polyurethane adhesive, specially used in laminating paper/film and paper/foil. It is workable for both rough side and plain side of paper.

Declaration
OCHEM SF9080 is a single-component solvent-free polyurethane adhesive are in compliance with the positive lists of the following, internationally accepted guidelines for the production of articles intended to come into indirect contact with food stuff.
- EU RoHS directive (EU) 2015/863 amending Annex II to directive 2011/65/EU
- CFR, title 21, § 175.105 of the FDA, Washington D.C., respectively
- Regulation (EC) No 1907/2006 concerning the REACH

Technical Properties.
These properties are typical but do not constitute specifications.

Item	SF9080
Type	Main agent (Hardener)
Ingredient	NCO
Appearance	Yellowish or colorless transparent liquid
Density	1.16g/cm3
Solid Content(%)	100%
Viscosity (BKF90ºC)	1900±300
Shelf life	360days

Typical Features:

1. Health: Since no solvent is used in the process, there will be no impact on the physical and mental health of workers;
2. Environmental protection: No exist solvent emissions pollution to the environment;
3. Security: There is no danger of fire and explosion in the process of safe transportation and use, and there is no need to install explosion-proof facilities;
4. Energy conservation: Consumed power is less than half of that of dry lamination
5. Special application: this adhesive is available of being laminated with both sides (smooth side and rough side) of paper to foil in packs with zipper open.

Recommended Operating Conditions

Lamination condition:

Precise tension control and proper winding procedure could avoid delamination, tunneling and curling

Pot Life Static 45 minutes approximately
Dynamic 60 minutes approximately
Dry Coating Weight paper plain side: 2.5-3.0gsm; paper rough side: 3.0-3.5gsm
Pressure Disc temperature 95ºC -100ºC
Conveying Tube Temperature: 95~100ºC
Transferring Roller Temperature" 80~90ºC
Metering Roller 80~90ºC
Coating Temperature 80~90ºC
Laminating Temperature 35~50ºC
Cure Time 36 hours (45-55ºC) 36-72 hours(25ºC)
Cleaning Solvent Ethyl Acetate
Clean: Once the equipment is stopped (over 60 minutes), the solvent/plasticizer mixture is applied to clean the five coating rollers system(should comply with safety rules). The same cleaning procedure should also be performed when the equipment has completely stopped running.

Note : This adhesive is continuously added to the coating gap by conveying by a metering pump with a round disc pressure head. This pressure disc directly insert in our adhesive drums which is fully-opened at top side drum. Please let us know your pressure disc size which shall conform to inner diameter of round drum

Package

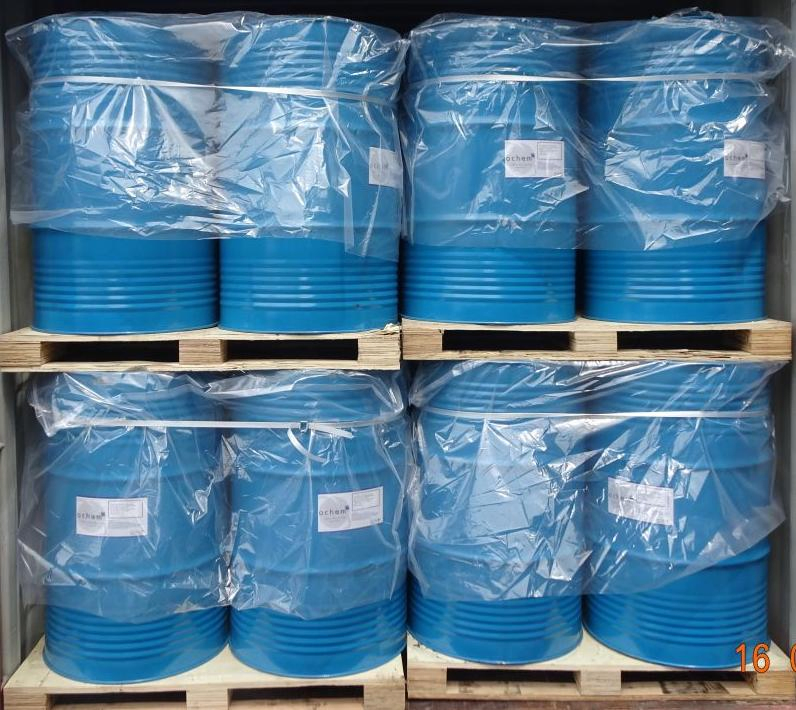

200L barrel; One 20GP container could be loaded with total 16000KGS net weight in total 80 barrels (200L)
Ochem Sf9080 Mono Component Solvent Free Adhesive for Paper/Foil Zipper Packaging

Ochem Sf9080 Mono Component Solvent Free Adhesive for Paper/Foil Zipper Packaging

Safety & Storage Attentions
Store in cool, dry, well-ventilated area away from heat and ignition sources . Keep container tightly

Attentions

1. When laminating different types of ink or transparent ink film, it is necessary to confirm whether it is suitable
2. The LDPE and CPP films must be corona-treated with a surface tension greater than 40 mN/m. The PA film must be double-corona treated as an intermediate layer. The surface tension of the PET film must not be Less than 52 mN/m.
3. When laminating PET printed film, confirm whether the appearance meets the requirements or not with lab test at first
4. If the contents of the package are corrosive, please confirm and start production
5. The temperature and humidity of the environment have a great influence on the time for storing the configured adhesive. It is recommended to arrange the adhesive in small quantities for a few times in high temperature and high humidity weather to avoid waste
6. During the laminating processing, care must be taken to check and control the viscosity.
7. Residual adhesive: The remaining adhesive cannot be used in principle. If the amount of residual liquid is excessive, it shall be sealed and stored in cool place after dilution, which could be used as diluent for operation in next day, and a small amount shall be little by little added to the newly prepared adhesive solution. It cannot be used any more, if it appears cloudy, translucent or thickened.
8. In actual production, if other types of OCHEM solvent-free adhesive are replaced, the cylinder, pipelines and rollers may not be cleaned. If solvent free adhesives other than OCHEM adhesives are replaced, the user must perform thorough cleaning of the feeding system.
9. Please stop using adhesive and then contact us when you find that the adhesive has become turbid or there is agglomeration.
